Precast Boundry Wall

Our boundary wall post and panel are pre stressed, which involves by imposing a predetermined force in to the concrete member by special high tensile steel wires of 4 mm Dia. Prior to hardening of the concrete. As a result, our boundary walls are free from crack, resistance to effect of impact, shock and stress.

We use 0.3 to 0.5 mm steel fiber wires as an additional ingredient, dispersed uniformly at random in small percentage other than OPC cement, aggregates and fine sand.

  • 1. More Flexural bending Strength up to 3 times more compared to conventional concrete.
  • 2. More Fatigue resistance up to 1 and ½ times
  • 3. Greater resistance to damage in case of heavy impact.
  • 4. Less Permeability i.e. less porous.
  • 5. Less Plastic shrink crack.
  • 6. Less drying shrink crack.

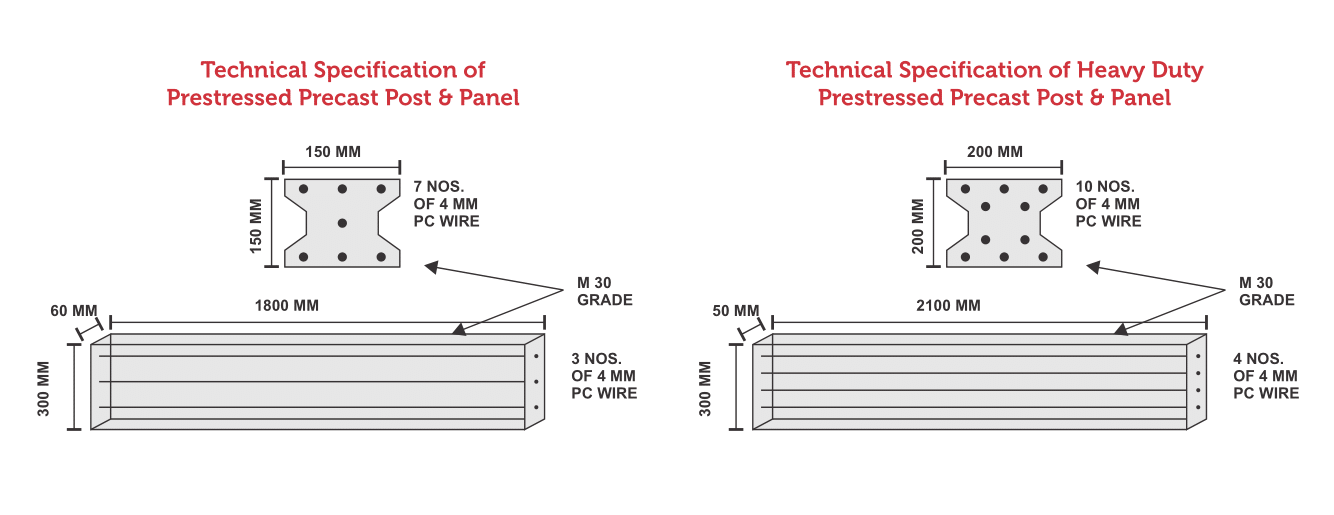

Sl. No Item Name Height Width Thickness
1 Pillar Post 3600 MM 200 MM 200 MM
2 Pillar Post 3000 MM 200 MM 200 MM
3 Pillar Post 3000 MM 150 MM 150 MM
4 Pillar Post 2400 MM 150 MM 150 MM
5 Panel 1800 MM 300 MM 45 MM & 50 MM
6 Panel 2100 MM 300 MM 50 MM
Features Of The Boundary Wall
  • 1. Economic as compared to the traditional brick or similar walls
  • 2. Easily erected
  • 3. Minimum labor needed
  • 4. Better than barbed-wire fencing
  • 5. Space saving
  • 6. Low maintenance
  • 7. Plastering not required
  • 8. We can shift wall from one place to another place

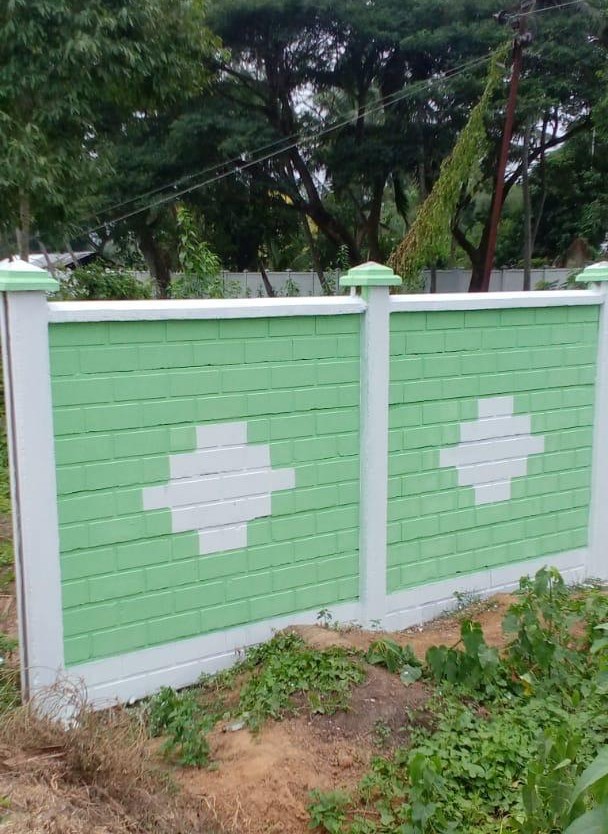

  • 9. We can decorate it in different shape & Design
  • 10. It more safer than bricks boundary wall

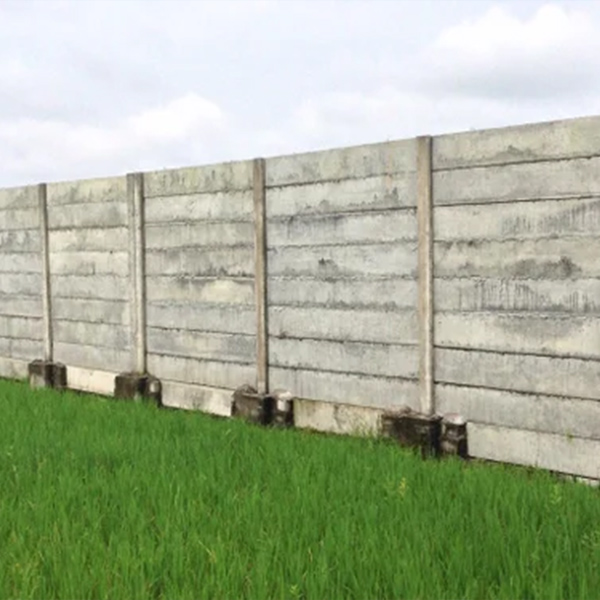

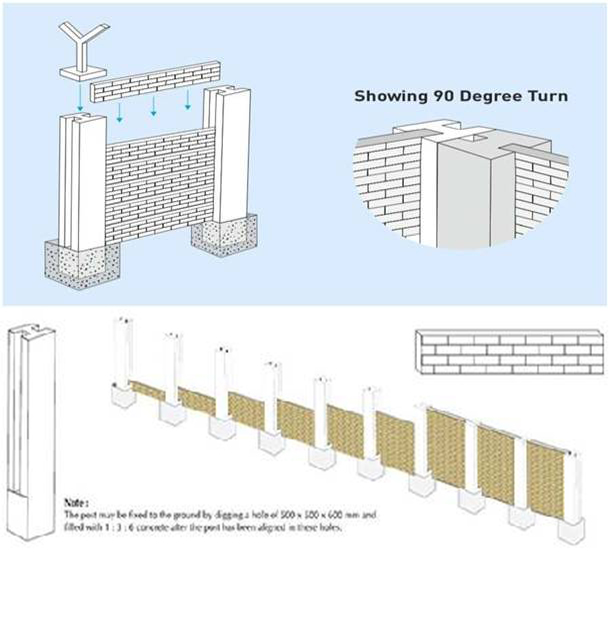

Our boundary walls are made from posts erected directly into the ground which have grooves to accommodate textured panels. The panels are available in two varieties, Plain & Design finish. Our boundary wall can be designed in different shape and sizes.
